    Electric Actuation and Spur Gear Integrated Stainless Steel Gate Valve for Enhanced Sealing Performance

    Ask Lasest Price
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 100pcs per month
    Delivery Time : 14 days
    • Product Details
    • Company Profile

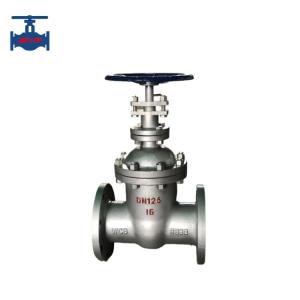

    Electric Actuation and Spur Gear Integrated Stainless Steel Gate Valve for Enhanced Sealing Performance

    Product introduction:


    Gate valve is a like a gate, with the movement direction perpendicular to the direction of the fluid, and gate valve can only be fully open and closed, not adjusted or throttled, It is widely used in petrochemical, pharmaceutical, electric power and other industries.
    This gate valve with non-rising stem, has two sealing faces, with bronze raw material, forming a wedge with a wedge angle varying with valve parameters, usually 50, and 2°52' when medium temperature is not high, it is made into a whole body, so called the rigid gate, it is Installed in the pipeline, as a closed circuit equipment only, not allowed to adjust the flow rate and empty use.
    Its working principle: turn the hand wheel to open and close the valve plate connected to the stem by the hand wheel and stem thread advance, back, lift or drop, very easy operation.

    Product technical parameters:


    Nominal Diameter DN (mm)

    50~300

    Nominal Pressure PN (MPa)

    1.6

    Test Pressure (MPa)

    Strength (water)

    2.4

    Enclose (Water)

    1.76

    Main Components

    Valve body

    A216-WCB

    Bonnet & Disc

    A216-WCB

    Stem

    2Cr13

    Seal

    Stainless steel

    Packing

    Oiled asbestos

    Hand-wheel

    HT200

    Working temperature

    -29~425

    Medium suitable

    Water, steam and oil

    Connection

    Flanges connection



    Product features:


    1. Low flow resistance, valve body internal medium channel is straight, medium into a straight line flow, flow resistance is small.

    2, Save manpower for opening and closing compared with the globe valve, because whether open or closed, the movement direction of the gate is perpendicular to the direction of the flow side of the medium.

    3. High height and long opening and closing time.The opening and closing stroke of the gate is larger, and the drop is carried out through the screw rod.

    4, Low water hammer phenomenon due to long shutdown time.

    5, Two ways direction, medium can flow to both sides in any direction, easy to install.

    6. The structural length (the distance between the two connecting ends of the shell) is small.
